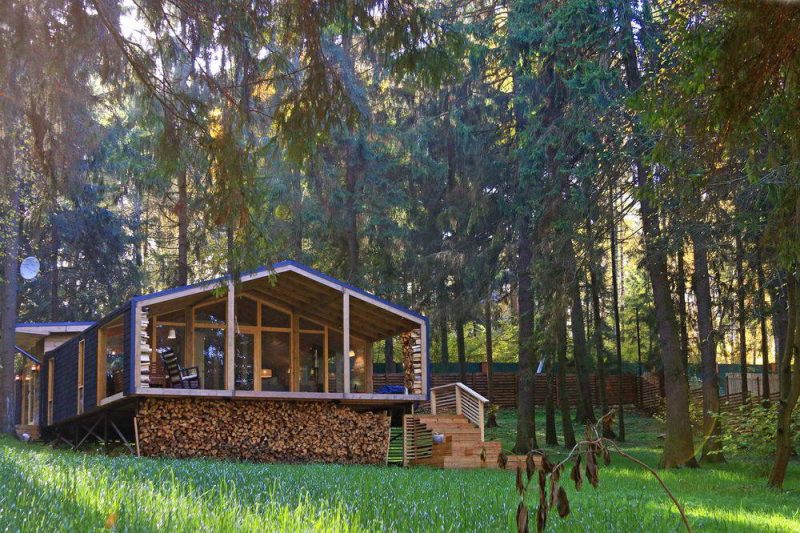

DublDom 110 set

Included into the price: elements:

• The house

Included into the price: DublDom technical specifications:

1.Roof construction (from street to house):

• Roof covering: Metal profiled sheet (Metal profile), color: gray graphite RAL 7024, matte;
• Lath: Sliced technically dried board 25x100mm, pine, AB grade, humidity 8-12%. Board treated with bio protective compound. Zinc-coated reinforced fastening is used for installation;
• Pressure rail: Sliced technically dried log 45x45mm, pine, AB grade, humidity 8-12%. Board treated with bio protective compound. Zinced strengthened fastening is used for installation;
• External carcass insulation: Diffusive windproof membrane for roofing;
• Insulation: Stone wadding 150mm, density 45 kg/m3;
• Carcass: Sliced technically dried log 45x145mm, pine, AB grade, humidity 8-12%. Timber treated with bio protective compound. All edges are treated with a special composition protecting the wood from cracking. Zinc-coated reinforced fastening used inmanufacturing;
• Internal carcass insulation: steam insulation film;
• The longitudinal walls of the modules (walls and ceilings along the ridge): log imitation 20x195mm, pine, AB grade; coloring: EUROTEX Aquaglazing, color: white.

2. Construction of external walls (from outside to house):

• Facade:

– Longitudinal walls of modules (walls and ceilings, along the ridge): Metal profiled sheet (Metal profile), color: gray graphite RAL 7024, matte;

– Edge facade (closed / partially glazed facade located across the ridge); AB grade; coloring: EUROTEX Aqua glazing, color: gray graphite.

• Lath: Sliced technically dried board 20x96mm, pine, AB grade, humidity 8-12%. Board treated with bio protective compound. Zinc-coated reinforced fastening used for installation;
• Pressure rail: Sliced technically dried log 45x45mm, pine, AB grade, humidity 8-12%. Board treated with bio protective compound. Zinced strengthened fastening is used for installation;
• External carcass insulation: Diffusive windproof membrane for walls;
• Insulation: Stone wadding 150mm, density 45 kg/m3;
• Carcass: Sliced technically dried log 45x145mm, pine, AB grade, humidity 8-12%. Timber treated with bio protective compound. All edges are treated with a special composition protecting the wood from cracking. Zinc-coated reinforced fastening used in manufacturing;
• Internal carcass insulation: steam insulation film;
• Fine finishing:

-The longitudinal walls of the modules (walls and ceilings along the ridge): log imitation 20x195mm, pine, AB grade; coloring: EUROTEX Aqua glazing, color: white.

-Transverse walls of modules (walls / partitions, located across the ridge): Planken 20x195mm, pine, sort AB; painting: EUROTEX Aqua glazing, color: Gray graphite;

-Bathroom: Mosaic tiles 29,8х29,8 Kerama Marazzi, Russia, Temari collection, color: gray graphite matte 20064 according to DSP 12 mm;

3. Construction of interior walls:

• Carcass: Sliced technically dried log 45×95-145mm, pine, AB grade, humidity 8-12%. Timber treated with bio protective compound. All edges are treated with a special composition protecting the wood from cracking. Zinc-coated reinforced fastening used in manufacturing;
• Insulation: Stone wadding 100-150mm, density 45 kg/m3;
• Carcass insulation from both sides: steam insulation film;
• Fine finishing:

-The longitudinal walls of the modules (walls and ceilings along the ridge): log imitation 20x195mm, pine, AB grade; coloring: EUROTEX Aqua glazing, color: white.

-Transverse walls of modules (walls / partitions, located across the ridge): Planken 20x195mm, pine, sort AB; painting: EUROTEX Aqua glazing, color: gray graphite;

-Bathroom: Mosaic tiles 29,8х29,8 Kerama Marazzi, Russia, Temari collection, color: gray graphite matte 20064 according to DSP 12 mm;

4.  Floor structure (from the house to the outside):

• Fine finishing:

-In residential areas: Laminate 32 class 1380h156h8, without chamfer, Unilin, Belgium, Eligna Collection, U3460 OAK, DARK BROWN;

-Bathroom: Mosaic tiles 29,8х29,8 Kerama Marazzi, Russia, Temari collection, color: gray graphite matte 20064;

• In residential areas: floor stand  wood fibre board 5mm under laminate and parquet board;
• Base of the floor:

-In residential areas: Moisture-resistant plywood of 21mm birch;

-Bathroom: Cement chipboard 24mm, hydro isolated;

• Carcass insulation: steam insulation film;
• Insulation: Stone wadding 100-150mm, density 45 kg/m3;
• Carcass: Sliced technically dried log 45x250mm, pine, AB grade, humidity 8-12%. Timber treated with bio protective compound. All edges are treated with a special composition protecting the wood from cracking. Zinc-coated reinforced fastening used in manufacturing;
• External carcass insulation: Diffusive windproof membrane of high density, black;
• Protection against rodents: Zinc-coated net 0.6mm with 5x5mm cells;
• Rough filing: Sliced technically dried board 27x143mm, larch, C grade, humidity 15-18%. Timber treated with bio protective compound. Zinc-coated reinforced fastening used in installation; EUROTEX Aqua glazing, color: black.

5. Windows and entrance doors:

• Windows: Wooden frames 78mm with double sealing contour. Triple-glass windows 4x12x4x12x4i. Factory dying, color: gray graphite. Roto NT fittings;
• Entrance doors: Wooden frames 78mm with double sealing contour. Triple-glass profile 4x12x4x12x4i. Factory dying, color: gray graphite. Roto NT fittings, reinforced hinges, mortise lock;
• Stained glass windows: reinforced triple-glass profile 5x14x4x14x5i.

6. Electrics:

• Electrical wiring: hidden in the carcass. The cable laying in the walls is made in metal corrugation with pvc insulation;
• Lighting cable Fil Cu 3х1,5mm;
• Sockets cable Fil Cu 3х2,5mm;
• Electrical heating cable Fil Cu 3х4mm ;
• Hob and oven cable Fil Cu 5х4mm;
• Socket groups, double-positioned, ceramic based;
• Automatics: 25A B category three-pole automatic machine Lighting – 10A automats. Household sockets – 16A automats. Hob, socket groups and humid areas – differential automats.

7. Engineering:

• Sewage: PVC pipes 50/110mm. Connection with external network.
• Water pipes: Seamless polypropylene D20mm, combined with a flexible underwater pipe (protection against leaks). Connection to external networks.
• Heated floor in the bathroom: Heating mats with temperature regulator.

8. Ventilation:

• Compulsory rom the kitchen and bathroom area. Ventilation channel with a diameter of 100 mm. Fan riser on the roof.

9. Other:

• Heater (located in a residential area). Product name / type: Heater. Furnace Brenenor AOT-06 type 00 (door with glass). Notes: with a stand of Brenenor AOT-06 type 01 and complete mounting kit
• Basin mixer Grohe BauEdge 23330000 chrome.
• The sink in the bathroom. Washbasin Cersanit COMO 50 with aperture, without fittings. Notes: complete with floor pedestal Aqua Rhodes Omega 50.
• Toilet bowl Cersanit Carina 011-315 P-KO-CAR011-3 / 6-DL 3 / 6L.
• Grohe BauEdge shower mixer 23333000, chrome. Notes: complete with a shower headset Grohe Tempesta New 27853000.
• Glazing of the shower area. Color and type of glass: a 10 mm thick glass, hardened 1900×850, transparent, colorless. Notes: complete with metal profile of fixing to the floor and the pipe to the wall.
• Boiler. Product model: Storage water heater Thermex Mechanik MK 80 V.
• Kitchen installation (for laying communications). Notes: edges of water supply / sewerage for the sink; output electrical cable for connection of a hob, a refrigerator, ventilation.
